Categories: Distribution BOX
Model: IP65
Degree of protection: IP65
Resistance to impact: IK08
Glow wire resistance: ABS:650℃ Polycarbonate:750℃
Ball pressure test: 70℃
Ambient temperature range: -25℃/+40℃
Maximum operature voltage: 1000V AC/1500V DC
Double insulation: Class II
Categories |
Distribution BOX |
Model |
IP65 |
Degree of protection |
IP65 |
Resistance to impact |
IK08 |
Glow wire resistance |
ABS:650℃ Polycarbonate:750℃ |
Ball pressure test |
70℃ |
Ambient temperature range |
-25℃/+40℃ |
Maximum operature voltage |
1000V AC/1500V DC |
Double insulation |
Class II |
-Degree of protection: IP65.
-Resistance to impact: IK08.
-Glow wire resistance:
ABS: 650℃
Polycarbonate: 750℃
-Ball pressure test: 70℃
-Ambient temperature range: -25℃ / +40℃
-Maximum operating voltage:1000 V / AC /1500 V DC.
-Double insulation: Class ll
IP65 surface distribution boxes[ABS]
Reference No. |
No. of modules |
Dimensions |
Weight |
Power dissipation according to temperatire increase ℃ P[W]* |
Type |
||||
|
|
HEIGHT X WIDTH X DEPTH |
KG |
20 |
25 |
30 |
35 |
40 |
|
FCDB-EU-A4P |
1×4 DIN rail |
231×166×113 |
0.75 |
8.9 |
11.1 |
13.3 |
15.5 |
17.8 |
65S04 |
FCDB-EU-A6P |
1×6 DIN rail |
231×202×113 |
0.84 |
10.1 |
12.6 |
15.1 |
17.7 |
20.2 |
65S06 |

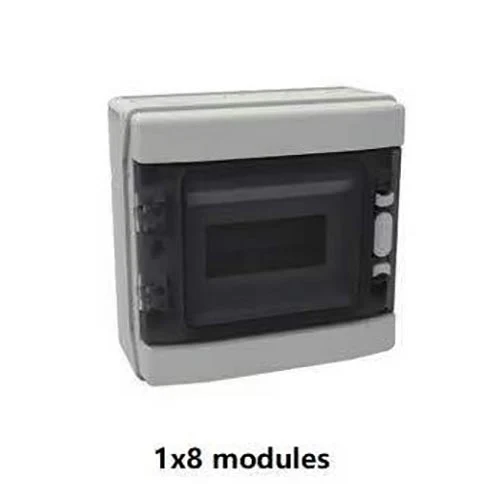

FCDB-EU-A8P |
1×8 DIN rail |
231×238×118 |
0.95 |
11.6 |
14.5 |
17.4 |
20.3 |
23.1 |
65S08 |
FCDB-EU-A12P |
1×12 DIN rail |
246×310×148 |
1.51 |
16.6 |
20.7 |
24.8 |
29.0 |
33.1 |
65S12 |
FCDB-EU-A18P |
1×18 DIN rail |
286×418×148 |
1.97 |
23.1 |
28.9 |
34.7 |
40.4 |
46.2 |
65S18 |
FCDB-EU-A24P |
2×12[24] DIN rail |
436×310×148 |
2.51 |
25.9 |
32.3 |
38.8 |
45.3 |
51.7 |
65S24 |
IP65 surface distribution boxes[Polycarbonate]
Reference No. |
No. of modules |
Dimensions |
Weight |
Power dissipation according to temperatire increase ℃ P[W]* |
Type |
||||
|
|
HEIGHT X WIDTH X DEPTH |
KG |
20 |
25 |
30 |
35 |
40 |
|
FCDB-EU-P4P |
1×4 DIN rail |
231×166×113 |
0.81 |
8.9 |
11.1 |
13.3 |
15.5 |
17.8 |
65S04 |
FCDB-EU-P6P |
1×6 DIN rail |
231×202×113 |
0.83 |
10.1 |
12.6 |
15.1 |
17.7 |
20.2 |
65S06 |
FCDB-EU-P8P |
1×8 DIN rail |
231×238×118 |
0.96 |
11.6 |
14.5 |
17.4 |
20.3 |
23.1 |
65S08 |
FCDB-EU-P12P |
1×12 DIN rail |
246×310×148 |
1.51 |
16.6 |
20.7 |
24.8 |
29.0 |
33.1 |
65S12 |
FCDB-EU-P18P |
1×18 DIN rail |
286×418×148 |
2.03 |
23.1 |
28.9 |
34.7 |
40.4 |
46.2 |
65S18 |
FCDB-EU-P24P |
2×12[24] DIN rail |
436×310×148 |
2.51 |
25.9 |
32.3 |
38.8 |
45.3 |
51.7 |
65S24 |
