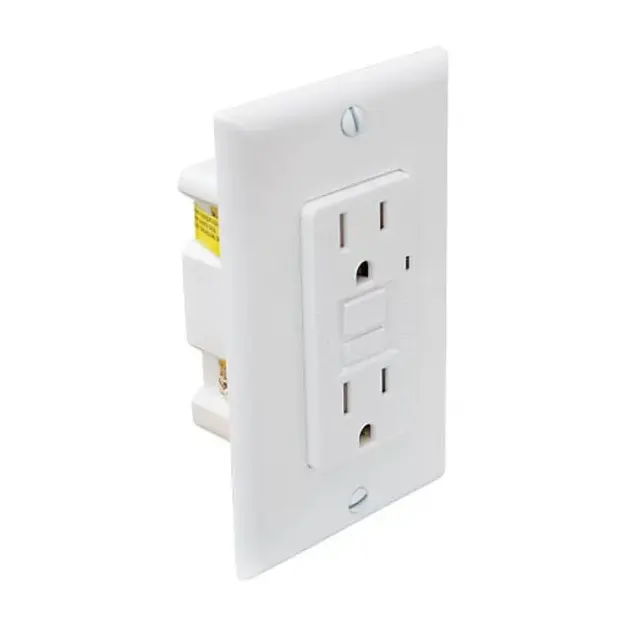

Leakage Protection Socket
  • Leakage Protection SocketLeakage Protection Socket

Leakage Protection Socket

Leakage Protection Socket, also known as 86-type leakage protection socket. It is the one of the patented products researched and developed independently by our company using international advanced design and advanced manufacturing technology.

Send Inquiry

Product Description

Leakage Protection Socket, also known as 86-typeleakage protection socket. It is the one of the patented products researched and developed independently by our company using international advanced design and advanced manufacturing technology. Use mechanical structure, clever product structure, user-friendly design, small size, beautiful appearance, safe and reliable, high sensitivity, long life, easy to install. This product is suitable for circuits of AC 50/60Hz, rated voltage of 230V, rated current of 40A and below, to protect the personal and electrical equipment from electric shock, leakage, surge, also used as two or three plug socket , meanwhile to prevent electrical fire hazard caused by ground fault current from the circuits of insulation aging or damage.

TXNLSLeakage Protection Socketmeets GB28527 standard, no overload and short circuit protection. It is installed in the 86-type concealed box which on the wall indoors, suitable for air conditioners, electric water heaters, vending machines, drinking fountains, refrigerators, washing machines and other electrical equipment with the power within 2500W (10A) or 3500W (16A).
Leakage Protection Socketis the best choice for security guarantee in the home, hotels, swimming pools, factories, schools, hospitals and other places.


Leakage Protection Plug Details


Main technical parameters

Model

TXNLS-10

TXNLS-16

TXNLS-10Y

TXNLS-10X

Rated operating voltage Un

230V~

Rated current In

10A

16A

10A

10A

Conventional heating current Ith

15A

20A

15A

15A

Rated making-breaking capacity Im

500A

Rated limit short circuit capability Inc

1500A

Rated residual operation current I△n

10mA/30mA

Rated residual non-operation current I△no

5mA/30mA

Operation time

≤0.1s

Rated frequency Fn

50Hz/60Hz

Mechanical and Electrical Life

6000 times

Surge protection

Withstand surge impact of 6KV/3KV,

meet voltage/current surge

mode of 1.2/50μs,8/20μs.


Scope of Application

This leakage protection socket is mainly used in home, hotels, schools, factories, gas stations, laboratories and public places, provide minimize leakage protection for the terminal of electric branch, provide minimize leakage protection of one-on-one for personal and household appliances, such as: air conditioners, electric water heaters, refrigerators, washing machines, computers, electric kettles, microwave ovens, electric stove, TV, electric water pumps, hair dryers, electric irons, vacuum cleaners, electric lawn mowers, hand-held electric tools and toilets, kitchens and other wet electric field. When the leakage current is greater than 6mA / 10mA / 20mA / 30mA, the leakage protection socket can quickly and automatically cut off the power within 25ms, both to protect personal safety, and to protect electrical equipment from damage and the fire caused by this.


Normal working conditions

◆The ambient air temperature is -5℃~+40℃

◆ Relative humidity in the ambient air temperature of +40 ℃ does not exceed 50%, the ambient air temperature ≤ 20 ℃, the humidity does not exceed 90%

◆ Altitude of the installation site is not more than 2500 meters

◆ Pollution level: Ⅱ

◆ The external magnetic field of installation site in any direction does not exceed 5 times the geomagnetic field

◆ Suitable places should be rainproof, fireproof, anti-shock and anti-vibration


Product Features

●National standards, quality assurance: meet GB16916.1, GB16916.22, GB2099.1 standards.

● The new indicator design, create a precedent for the industry.

● Fast working type leakage protection, can cut off the power within 10 ms.

● Clever design, suitable for 86-type concealed installation.

● This leakage protection socket has leakage protection, cut off the power in time when personal electric shock.

● Solve the problems that high-power air-conditioning, instant water heaters and other electrical and power supply can not use plug and socket to connect.

● Use method of tightening terminal with screw to replace the traditional wiring mode, the power connection is secure and reliable.

● The leakage protection socket achieve min leakage protection of one-on-one for the personal and household appliances, very secure.

● Super surge protection, can prevent equipment damage caused by lightning and surge over-voltage, high current impact.

● The unique contact patented technology, cut off the zero line and live line at the same time, the use of electricity is more secure and reliable.

● Blue reset (closing), yellow test (opening)
