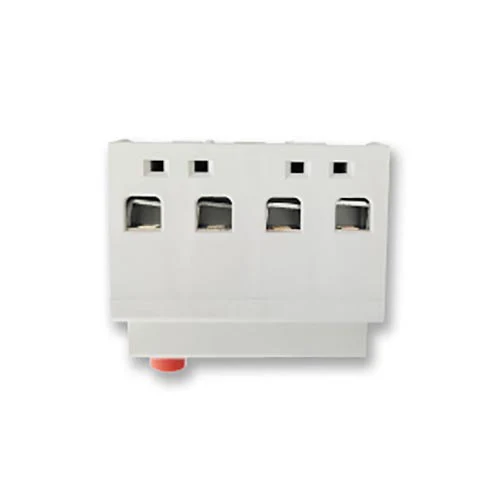

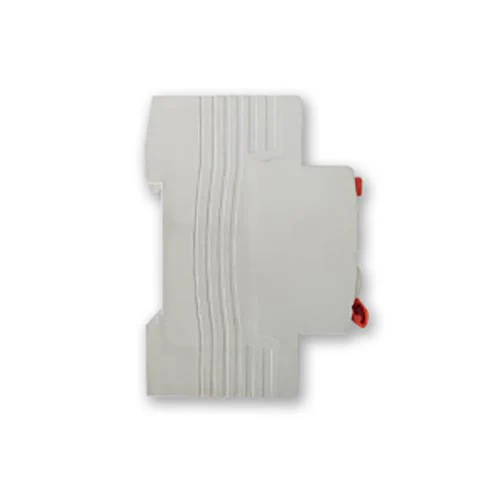

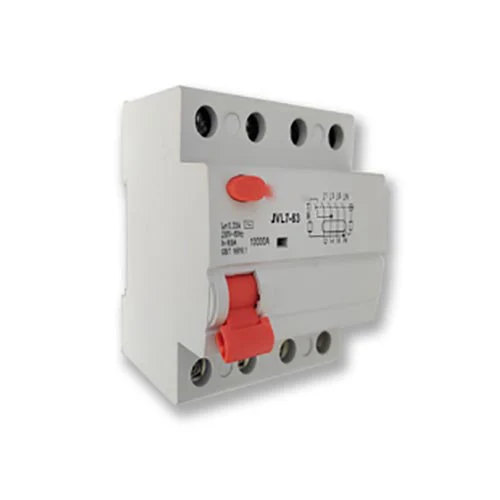

JVL7-63 Leakage Circuit Breaker Without Overcurrent Protection
  • JVL7-63 Leakage Circuit Breaker Without Overcurrent ProtectionJVL7-63 Leakage Circuit Breaker Without Overcurrent Protection
  • JVL7-63 Leakage Circuit Breaker Without Overcurrent ProtectionJVL7-63 Leakage Circuit Breaker Without Overcurrent Protection
  • JVL7-63 Leakage Circuit Breaker Without Overcurrent ProtectionJVL7-63 Leakage Circuit Breaker Without Overcurrent Protection

JVL7-63 Leakage Circuit Breaker Without Overcurrent Protection

As a professional high quality JVL7-63 Leakage Circuit Breaker Without Overcurrent Protection manufacturer, you can rest assured to buy JVL7-63 Leakage Circuit Breaker Without Overcurrent Protection from our factory. And we will offer you the best after-sale service and timely delivery.As the professional manufacture, we would like to provide you JVL7-63 Leakage Circuit Breaker Without Overcurrent Protection.
■Executive standards: IEC61008, GB/T16916.1
■Type: Electromagnetic type
■Residual operating current characteristics: A, AC, S
■Number of poles: 1P+N, 3P+N (N on the left and N on the right)
■Rated current: 25, 32, 40, 63A
■Rated voltage: AC240/415
■Rated frequency: 50/60Hz
■Rated residual operating current (I △ n) A: 0.03, 0.1, 0.3
■Rated residual non operating current: 0.5I △ n~I △ n
■Wiring height: 19mm
■Mechanical and electrical life: 4000 times
■Terminal wiring cross-sectional area: 25mm ² And below wires
■Wiring terminals: screw terminals
■Wiring method: column type wiring method
■Tightening torque: 2N. m
■Rated breaking capacity: 6000A

Send Inquiry

Product Description

Wenzhou Changjiu Technology Co., Ltd. is a professional China JVL7-63 Leakage Circuit Breaker Without Overcurrent Protection manufacturer and supplier, known for its quality service. Adhering to the pursuit of perfect quality of products, so that our JVL7-63 Leakage Circuit Breaker Without Overcurrent Protection have been satisfied by many customers. In order to ensure the quality and customer needs, we have cooperated with domestic power groups with strong production strength. We will strictly screen each supplier and send videos to customers to watch.

JVL7-63 Leakage Circuit Breaker Without Overcurrent Protection


Technical Parameter

■ Executive standards: IEC61008, GB/T16916.1

■ Type: Electromagnetic type

■ Residual operating current characteristics: A, AC, S

■ Number of poles: 1P+N, 3P+N (N on the left and N on the right)

■ Rated current: 25, 32, 40, 63A

■ Rated voltage: AC240/415

■ Rated frequency: 50/60Hz

■ Rated residual operating current (I △ n) A: 0.03, 0.1, 0.3

■ Rated residual non operating current: 0.5I △ n~I △ n

■ Wiring height: 19mm

■ Mechanical and electrical life: 4000 times

■ Terminal wiring cross-sectional area: 25mm ² And below wires

■ Wiring terminals: screw terminals

■ Wiring method: column type wiring method

■ Tightening torque: 2N. m

■ Rated breaking capacity: 6000A


Installation:

■ 35.5mm guide rail installation

■ Vertical installation

■ Shell protection level: IP20


Appearance and installation dimensions:
