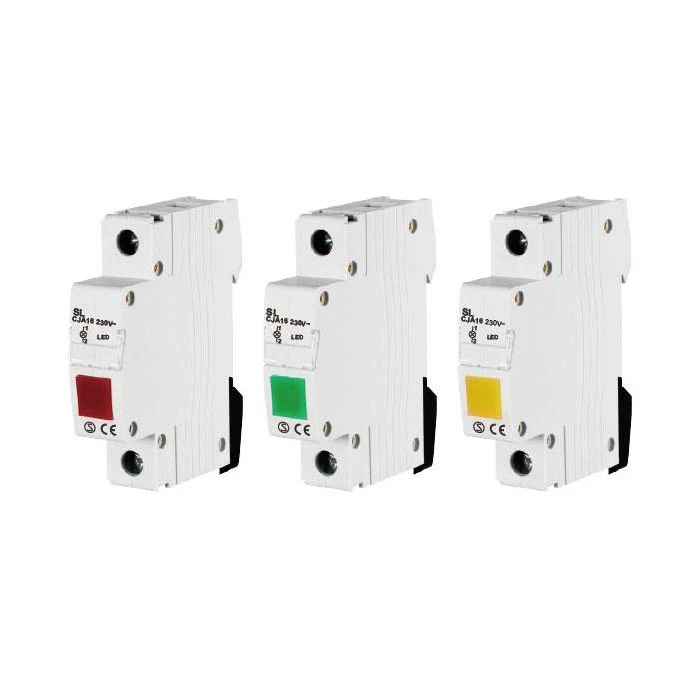

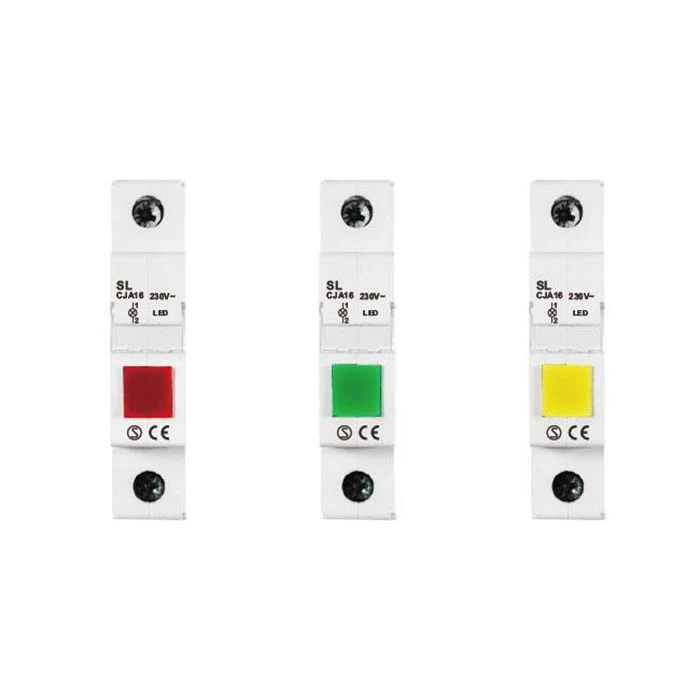

Signal Lamp CJA16

The Modular Signal Lamp is applicable to circuit with rated voltage 230V~ and frequency 50/60Hz for visual indication and signaling.

Compliance

IEC60947-5-1

EN60947-5-1

Technical Data

■ Rated voltage: 230V AC

■ Rated frequency: 50/60Hz

■ Colour: red, green, yellow

■ Connection terminal: pillar terminal with clamp

■ Connection capacity: rigid conductor 10mm

■ Installation:

□ On symmetrical DIN rail 35 mm

□ Panel mounting

■ Terminal Connection Height: H=19mm

SL Sgnal Lamp

Max power: 0.6W

Illumination: LED

Service duration: 30,000 hours

SN Signal Lamp

Max power: 1.2W

Illumination: Neon bulb

Service duration: 15,000 hours

CJA16 LED Signal Lamp

Max power: 0.6W

Illumination: LED

Service duration: 30,000 hours

Construction and Feature

Low service duration, minimum power consumption

Compact design in modular size

Easy installation

Overall & Installation Dimensions
