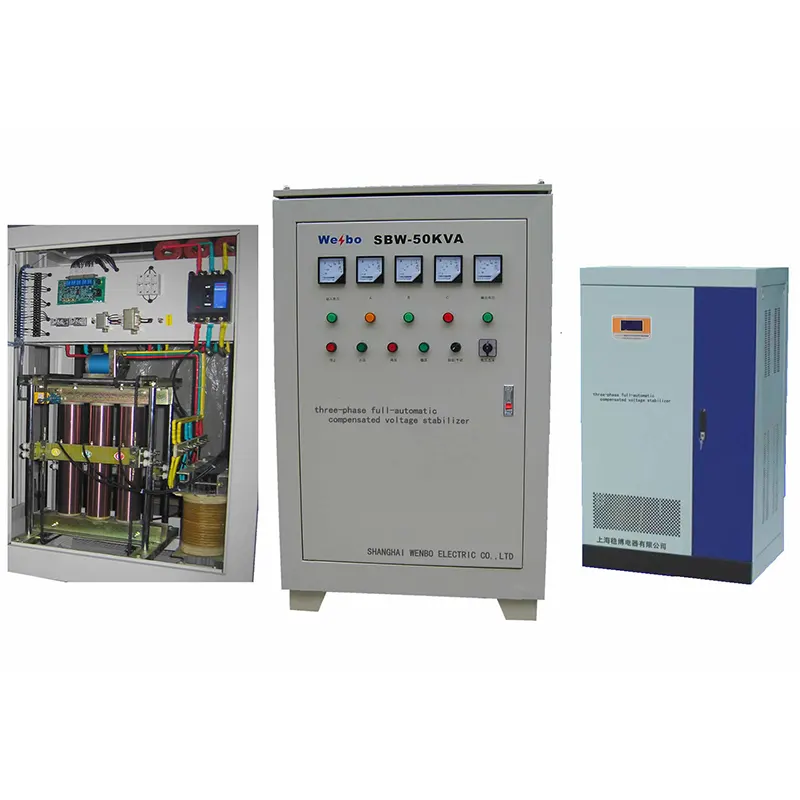

DBW SBW Power Voltage Stabilizer is a contact adjustable automatic voltage compen-sation high-power regulating power device. When voltage from supply network is varied or dueto loading current effect, it automatically regulates the output voltage to ensure the normal func-tion of the varied of electric equipments.
DBW SBW Power Voltage Stabilizer is a contact adjustable automatic voltage compen-sation high-power regulating power device. When voltage from supply network is varied or dueto loading current effect, it automatically regulates the output voltage to ensure the normal func-tion of the varied of electric equipments.
Input voltage |
Single phase: 220V; Three phases: 380V |
Output voltage |
Single phases: 220V±20% or 220V±30% |
Phase |
Single phase; Three phases four-line |
Frequency |
50Hz/60Hz |
Response |
within 1 sec.(against 10% input voltage deviation) |
Efficiency |
Better than 95% |
Ambient temperature |
-10oC~+40oC |
Waveform |
Non-lack fidelity waveform |
Insulation restortion |
Better than 5MΩ |
Overload |
Double rated current, one min |
Protection |
Overvoltage, overcurrent, feed phases |
DBW/SBW(F) compensation Automatic Voltage Stabilizer is designed referring to international congener products. When input voltage fluctuated, it can output the voltage automatically and stably. Our product has many advantages as follows: high power capacity, high efficiency, wide input voltage range, high output voltage precision, smooth voltage regulation, broad load application, long continuous work life, no wave distortion, strong protection performance, little dimension, light weight, work reliability, easy operation, simple maintenance and so on.
This product is widely used in industrial and mining enterprise, communications, broadcast television, traffic, national defense, construction, medical treatment, large-scale mechanical and electrical equipment of scientific research and culture departments, production assembly line, construction project equipment, broadcast television equipment, medical equipment, precision machine tool, electronic computer, precision instrument, elevator and so on.
