3P Pole Panel Mount 63A Maximum Current Isolator Switch

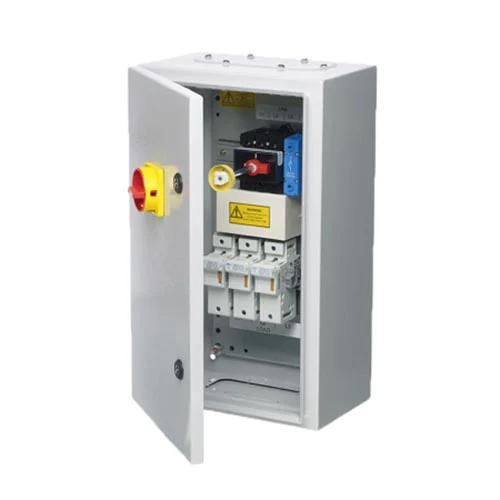

RS PRO 3P+N Enclosed Door Interlocked Fused Switch (63A)

A robust Steel cabinet with an interlocking fused switch for use with low voltage switchgear applications including power distribution, load isolation and motor start up and stop.

Constructed from epoxy coated Steel for a hardwearing lockable cabinet that can take occasional damage and impact. The switch handle is constructed from corrosion resistant plastic and can be padlocked avoiding accidental or unauthorised use.

Easily mountable via 4 x 8.5mm screw holes and fitted with 22 x 58mm fuse holders for a strong, high quality fused cabinet.

Features and Benefits

• 3P+N interlocked fused switch

• Voltage rating of 690V

• Maximum current of 63A

• Easy access and lockable

• Padlockable switch handle

• Epoxy powder coated Steel

• Fitted with 22 x 58 mm fuse holders

• Dimensions of 500 x 300 x 244mm

Load Break Switch: CB, CE, SEMKO, IEC EN 60947-3

Fuse Holder: CE, TUV, EN60269-1, HD60269-2

Specifications
